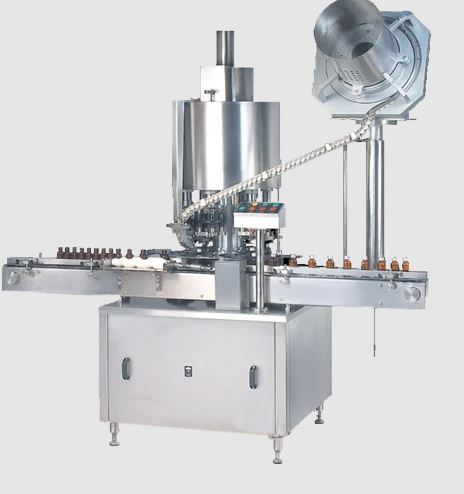

Automatic ROPP Cap Sealing Machine
Automatic ROPP capping machine is designed and manufactured for capping of bottle/container by applying pressure on cap against the container. Machine is available in several models ranging from single head to multiple head. Machine consists of Welded base structure enclosed with Stainless Steel Doors, Product transmission conveyor, Star wheel, cap release chute, single or multiple capping head, vibratory bowl, Panel Box. In this machine filled Bottle fed into conveyor from infeed side and moving towards star wheel from where it bring below the sealing head in subsequent indexing parts, meanwhile the bottle pick up the cap from chute and rotary head performs sealing operation and bottle move further on conveyor for next operation.
Salient Features
- Machine is designed and manufactured in accordance with cGMP compliance.
- Welded Base structure covered with SS Door.
- All contacting parts made of SS 316 material.
- Single motor synchronizes conveyor, Star wheel and rotary turret.
- Sealing pressure can be vary as per required gauges and size of cap.
- Conveyor system with self-lubricating UHMW-PE bottom guide for slat chain and adjustable side guides.
- Machine with specially designed vibratory bowl and chute with no cap sensors for continuous flow of the cap.
- No bottle no cap arrangement.
- Very less mechanical adjustment required due to the special design.
Optional Features
- Motorized height adjustment system
- Safety Acrylic Cabinet with SS Pipe Frame structure.
Technical Specifications
| Model | CAPKTS-AROPP | CAPKTS-AROPP-4 | CAPKTS-AROPP-6 | CAPKTS-AROPP-8 |
|---|---|---|---|---|
| Product Type | Glass/Aluminium/PET/HDPE Bottle | |||
| No. of Capping Head | 1 | 4 | 6 | 8 |
| Output (Product/hour) max. | 3600 | 6000 | 9000 | 12000 |
| Cap size (Dia.) (mm) | 22 to 56 | |||
| Power Consumption (hp) | 2 | 3 | ||
| Power Supply | Three Phase, 440 Volts, 50 Hz | |||
| Change over parts requirement: | ||||
| Star wheel and back guide, Cap chute, Vibratory cap bowl | ||||
*Rights of technical improvements & modification reserved.
