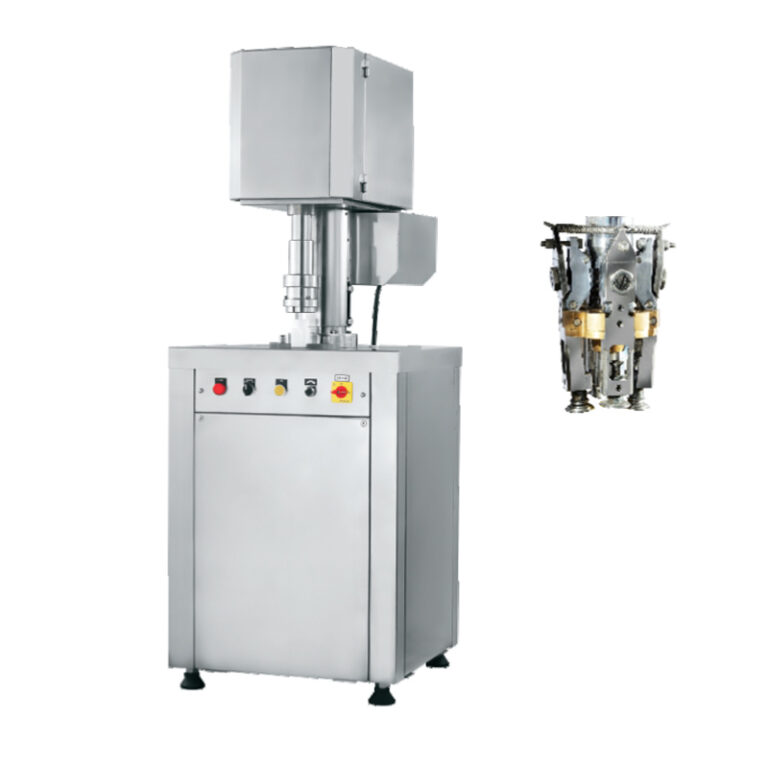

Semi-Automatic Screw Capping Machine
Semi-automatic Screw Capping machine is designed and manufactured for capping of bottle/container by Screwing operation on cap against the container. This economic, compact and versatile model is generally used in small/medium industry. Machine consists of Welded base structure enclosed with Stainless Steel Doors, Screw Capping Head, Product Holder. Containers have to place below the Capping head manually in Product holder. Capping head automatically press the neck of the container at a pre-set depth and after capping, return to its original position and operator has to remove bottle manually after capping.
Salient Features
- Machine is designed and manufactured in accordance with cGMP compliance.
- All contact parts made of SS 316 material other construction made of SS 304.
- Welded Base structure covered with SS Door.
- Very compact and versatile model.
- Easy to set and no change parts require for limited container diameter.
- Sealing pressure can be varying to suit different gauges and sizes of caps.
- Low vibration, low noise, low power consumption.
Technical Specifications
| Model | CAPKTS-SA-SW |
|---|---|
| Product Type | Glass/Aluminium/PET/HDPE Bottle |
| Output (Product/hour) max. | 1000-1200 (Depend on Cap Size, Manual Loading & Unloading of Product) |
| No. of Capping Head | 1 |
| Power Consumption (hp) | 1 |
| Power Supply | Single Phase, 230 Volts, 50 Hz |
| Change Over required | As per cap Diameter |
| * Depends on bottle size, cap size and type of cap
* Machine can design and manufacture as per customer requirement. | |
*Rights of technical improvements & modification reserved.
