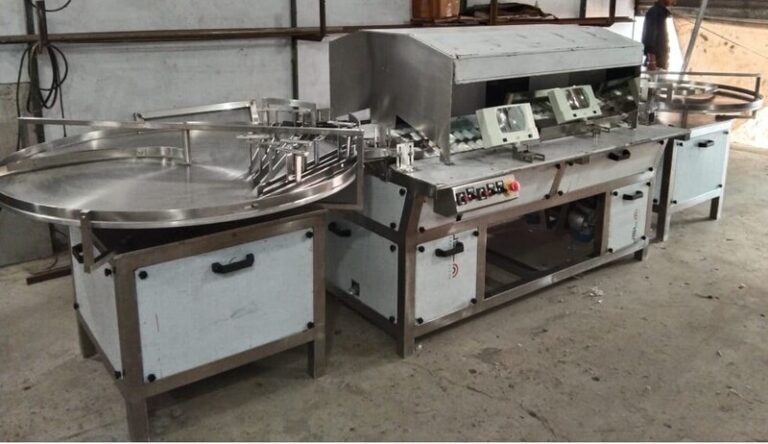

Visual Inspection Machine-Roller Type
Visual inspection Machine-Roller type is used for visual inspection of any breakage, Improper Cap sealing or presence of any foreign particles in powder or liquid. Machine supplied with inbuilt Infeed and outfeed turntables. These type of machine is mainly used for Glass vials in Pharmaceutical Industries. Vials travelling on rollers are check by operators visually through magnifying lens and in case any fault detected, operator manually pick that faulty vial and puts it outside the machine in rejection box.
Salient Features
- Machine is designed and manufactured in accordance with cGMP compliance.
- Compact design with straight inspection facility on both the sides of the machine.
- All independent drives.
- Smooth and jerk free operation.
- Automatic vial transfers from in feed turntable to Roller chain conveyor and to Out feed track without any breakage.
- Individual tube lights for each inspection point for clear vision.
- Machine with Two tracks of Nylon/Delrin roller.
- Inbuilt AC VFD system.
Optional Features
- Magnifying lens.
Technical Specifications
| Model | INKTS-A-VR-120 | INKTS-A-VR-240 | ||
|---|---|---|---|---|
| Product Type | Glass Vial | |||
| Product Diameter (mm) | 20 to 30 | |||
| Product Height (mm) | 30 to 100 | |||
| Output (Product/hour) max. | 7200 for 5/10 ml Vial | 14400 for 5/10 ml Vial | ||
| Nos. of Operators on each side | 1 | 2 | ||
| Power Consumption (hp) | 2 | |||
| Power Supply | Three Phase, 440 Volts, 50 Hz | |||
*Rights of technical improvements & modification reserved.
