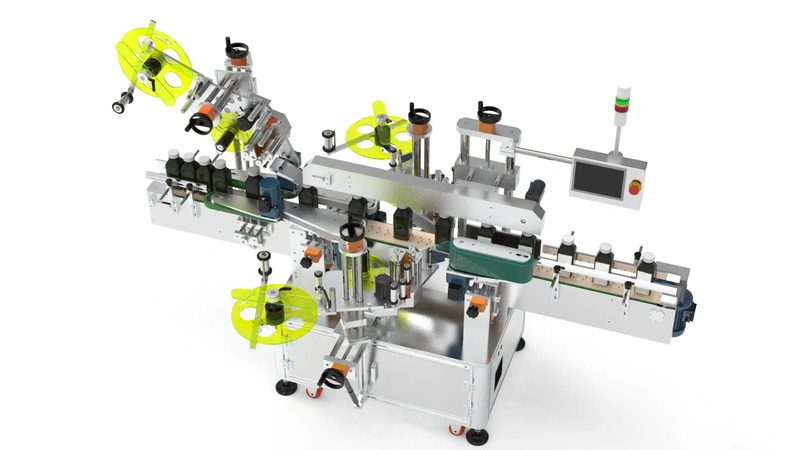

Automatic Vertical-horizontal Sticker Labelling Machine
Labelling machine plays an important role in pharmaceutical industries to provide detail of product by sticking label on product container by considering this KTS provides Automatic Self-Adhesive Labelling machine is Suitable for Sticker Labelling on Vials, Bottle and Ampoules etc in pharmaceutical as well as Beverages, Cosmetics etc type of industries. Specially this type of machine is used for labelling the Flat Bottles on both or single side.
Salient Features
- Machine is designed and manufactured in accordance with cGMP compliance.
- Structure is made of SS 304.
- Delrin Slat chain/SS Slat chain/Modular Belt/Flat Belt or Similar Conveyor.
- Infeed Feed worm system for Separation and accurate handling of bottle.
- Specially designed drive mechanism and label dispensing unit for label release.
- Top conveyor system for Holding of Bottle from top for accurate labelling.
- Synchronized speed of label dispensing, Top conveyor and conveyor.
- Break Assembly to avoid variation in labelling.
- Easy to change Label dispensing height.
- Suitable for Role size of 300 mm OD with core ID 3”.
- Machine with PLC and HMI System for easy operating.
- Most reliable component for utility like Pneumatic component of Janatics/SMC/Festo etc. and Electrical Component of Panasonic/Bonfiglioli/Rotomotive etc.
Optional Features
- Label roll empty – Machine stop system with Alarm.
- Missing Label roll – Machine stop system with Alarm.
- Special Label Sensor for sensing transparent film labels with no sensing mark.
- Option of contact coder, Hot foil coder, HP cartridge coder and Inkjet coder with various speed ranges available.
- Tower light to highlight machine status/operation.
- Special sensing system for checking missing label on product.
- Low Air – Machine stop with alarm system for pneumatically operated coding system.
- Vision system for checking barcode, presence or absence or pharma code on labels.
- Vision system with OCR system for checking coding on labels.
- Online pneumatically operated rejection system with rejection box.
- Toughened glass or acrylic safety cabinet for machine.
Technical Specifications
| Model | SLKTS-A-SSVH | SLKTS-A-DSVH | ||
|---|---|---|---|---|
| Model Type | Servo/Stepper | |||
| Number of Label Applicator Unit | Two | Three | ||
| Product Shape | Round/Flat/Square | |||
| Product Material | Glass/PET/HDPE | |||
| Product Type | Vial/Bottle/Container | |||
| Product Dia. (mm) | 20 to 90 | |||
| Product Height (mm) | 30 to 250 | |||
| Output (Product/hour) max. | 60 to 600 (Depends on Label and product diameter) | |||
| Label height (mm) | 10 to 200 | |||
| Label Length (mm) | 12 to 285 | |||
| Gap between Two Label (mm) min. | 5 to 6 | |||
| Label Roll Dia. (mm) max. | 300 | |||
| Label Core Dia. (mm) | 75 | |||
| Power consumption (hp) | 2 | 3 | ||
| Power supply | Three Phase, 440 Volts, 50 Hz | |||
*Rights of technical improvements & modification reserved.
