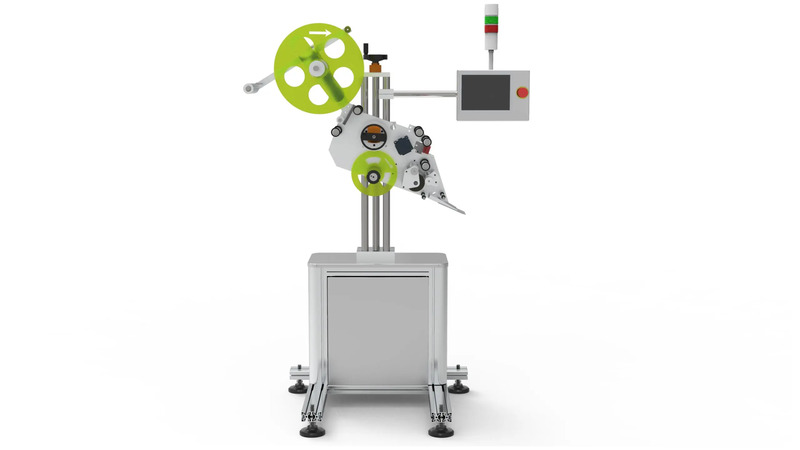

Stand Alone Hologram Label Applicator (SLKTS-STAH)
Stand Alone label applicator machine is portable sticker labelling machine. This machine is suitable for various type of label and film sticking on container when required higher volume and label on conveyor.
This economic model incorporates advance label dispensing system and capable of labelling up to 300 label/min. depending on length.
The high performance label dispenser incorporates advance microprocessor controller to be installed in very fast packaging lines.
Customer can incorporate with assembly line or other packing line to get a high efficiency. The unique system creates smooth label application operation and helps to achieve high speed.
Salient Features
- Very smooth and high speed operation.
- Speed can be varying at a single point.
- MS Powder coated stand.
- Fully password protected (not required by operator).
- Output up to 200-300/min.
- Accurate label placement.
- Built in product counter.
Optional Features
- Label roll Empty-Machine stop with alarm.
- Missing Label-Machine stop with alarm.
- Servo motor in place of Stepper motor for high speed application.
Technical Specifications
| Model | SLKTS-SAH |
|---|---|
| Model Type | Servo/Stepper |
| Output (Product/hour) max. | Depends on Label and product diameter |
| Label height (mm) | 10 to 200 |
| Label Length (mm) | 12 to 285 |
| Gap between Two Label (mm) min. | 5 to 6 |
| Label Roll Dia. (mm) max. | 300 |
| Label Core Dia. (mm) | 75 |
| Power consumption (hp) | 1 |
| Power supply | Single Phase, 230 Volts, 50 Hz |
