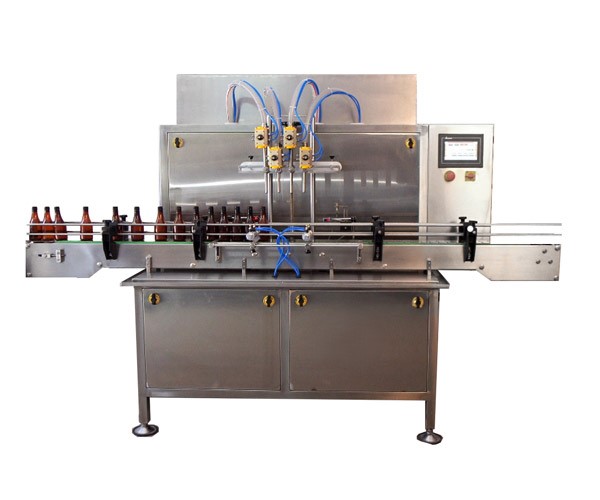

Automatic Gear Pump Liquid Filling Machine
Automatic Servo liquid filling machine utilizes the servo drive system for filling. Machine coupled with vertical movement and diving of nozzle provides long term energy saving also effectively reduces machine load rate. Gear pump fillers are positive displacement pumps with self-priming feature. Pump can fill minimum to maximum fill volume without any mechanical setting by HMI. To minimize foaming adjustable nozzle will have reciprocated according to filling dose, filling nozzle will go upwards from bottom level of bottle towards neck during filling.
Salient Features
- Design and manufactured under accordance with GMP standard.
- All Contact parts made from SS 316 and Non contacted parts are made from engineering plastic, SS 304 and other FDA approved materials.
- Welded Base structure covered with SS Door.
- Use of food grade PVC braided pipe for flow of liquid.
- Conveyor system with self-lubricating UHMW-PE bottom guide for slat chain and adjustable side guides.
- Drip tray under the conveyor.
- Elegant and easy control panel for total control on operation.
- Individual volume control for all pump.
- Inbuilt Holding tank of 25 liter capacity.
Optional Features
- Automatic chain washing system for conveyor belt.
- Inbuilt pre-inspection.
- Safety Acrylic Cabinet with SS Pipe Frame structure.
- Nitrogen Flushing.
Technical Specifications
| Model | FILLKTS-AL-SGP4 | FILLKTS-AL-SGP6 | FILLKTS-AL-SGP8 |
|---|---|---|---|
| Product Type | Plastic / Glass / HDPE bottles, Tin and Container etc. | ||
| Product Diameter (mm) | 30 to 100 | ||
| Filling volume Range (ml) | 10 to 1000 | ||
| No. of Filling Pump | 4 | 6 | 8 |
| Output (Product/hour) max. | 60 | 80 | 120 |
| Filling Precision | +-1 % or 0.5Gram depending of liquid with single Dose | ||
| Power Consumption (hp) | 5 | 7 | 9 |
| Power Supply | Three Phase, 440 Volts, 50 Hz | ||
| Change over parts requirement: | |||
| Nozzle, Hose Pipe for inlet and outlet | |||
*Rights of technical improvements & modification reserved.
