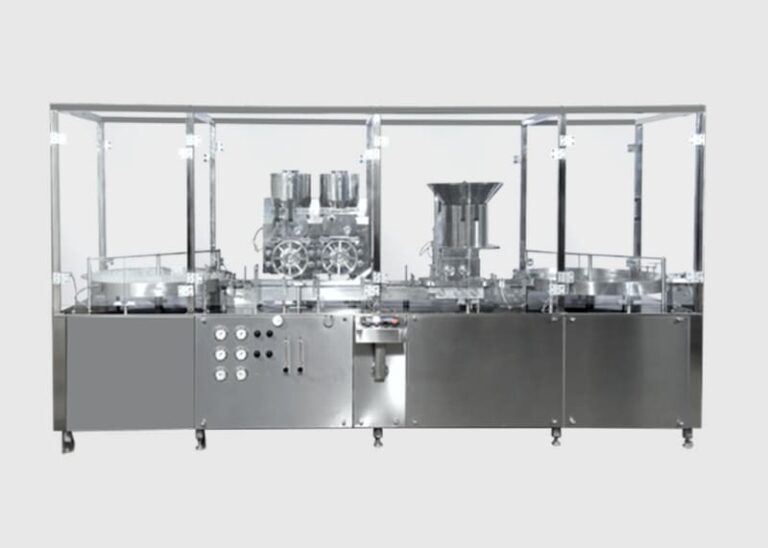

Automatic Vial Powder Filling and Rubber Stoppering Machine
Automatic vial Powder filling machine is a machine used for filling up the Injectable dry powder in to the vials. Also this type of machine model a rubber stopper on the top of the vial, once it is filled. This machine is designed with vacuum/pressure dosing system that helps achieve good accuracy and precision levels. It also has a provision of placing rubber stoppers on top of the containers in order to protect them from contaminants.
Salient Features
- Machine is designed and manufactured in accordance with cGMP compliance.
- Suitable to fill 50 mg to 6 gm.
- All contacting parts made of SS 316L.
- Pre and Post gassing system.
- Multiple Dosing system with the help of change parts.
- Individual drives for infeed and outfeed Turn table.
- A/C frequency drive for speed control.
- Pure air filter for air and vacuum.
- Safety clutch system to avoid vial breakage.
- Vacuum Operated Powered Wheel.
- Inbuilt Rubber Stoppering System Provision.
- Multiple dosing system with the help of change parts.
- Machine equipped with high quality gearbox.
Technical Specifications
| Model | FILLKTS-AP-VRS120 | FILLKTS-AP-VRS240 |
|---|---|---|
| Product Type | Glass/PET Round Vial | |
| Product Diameter (mm) | 15 to 55 | |
| Product Height (mm) | 30 to 100 | |
| Filling volume Range (mg) | 50 to 6000 | |
| Filling Precision | +-1 % depending upon uniformity of bulk density of powder under defined level of Humidity | |
| Output (Product/hour) max. | 7200 for Single Dose
3600 for Double Dose 2400 for Triple Dose 1800 for Four Dose | 144000 for Single Dose
3600 for Double Dose 2400 for Triple Dose 1800 for Four Dose |
| Power Consumption (hp) | 5 | 7 |
| Power Supply | Three Phase, 440 Volts, 50 Hz | |
*Rights of technical improvements & modification reserved.
