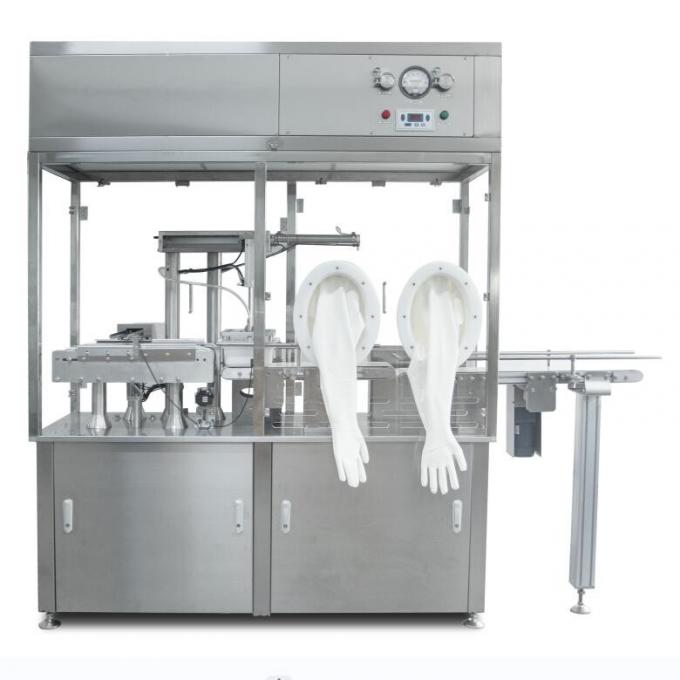

Semi-Automatic Nested Pre-Filled Syringe Filling Machine
The Semi-Automatic Pre-Filled Syringe (PFS) Filling Machine from KTS Pharmatech is designed to efficiently and accurately fill syringes with liquid medications. This machine combines semi-automated processes with precision engineering to handle the filling of pre-filled syringes, ensuring consistent dosage and high-quality results. It features user-friendly controls for easy operation and adjustment, making it suitable for small to medium-sized production runs. Ideal for pharmaceutical applications, the machine enhances productivity and maintains rigorous standards of accuracy and hygiene.
Salient Features
- Model : FILLKTS-SA-NPFS is a compact, elegant and matt – finished encompassed with stainless steel (SS-304)
- Perfect synchronization of PLC based cycle, filling stroke and peristaltic pump & Syringes to fill volume for 1ml to 5ml.
- Compact and feather-touch MMI control panel for easy control of the machine operation.
- The machine is equipped with easily adjustable levelling legs so foundation is not require.
Optional Features
- Fully enclosed in a barrier isolator, the syringe line offers the highest level of Current Good Manufacturing Practices (CGMP) aseptic processing available.
- Various types of syringe filling pump options: metal pump, peristaltic pump, ceramic pump
- Configurable with Open-RABS isolation protection system and Class 100 air purification.
Technical Specifications
| Model | FILLKTS-SA-NPFS |
|---|---|
| Model Type | Servo |
| Product Type | Nested Pre filled syringe |
| Output (Product/hour) max. | 4800 (Depends on fill volume and product Size) |
| Power consumption (hp) | 3 |
| Power supply | Single Phase, 230 Volts, 50 Hz |
*Rights of technical improvements & modification reserved.
